PVDF resin for lithium battery electrodes binder materials
PVDF resin for lithium battery electrodes binder materials(DR202B/DR202D/DR202E)
Product introduction

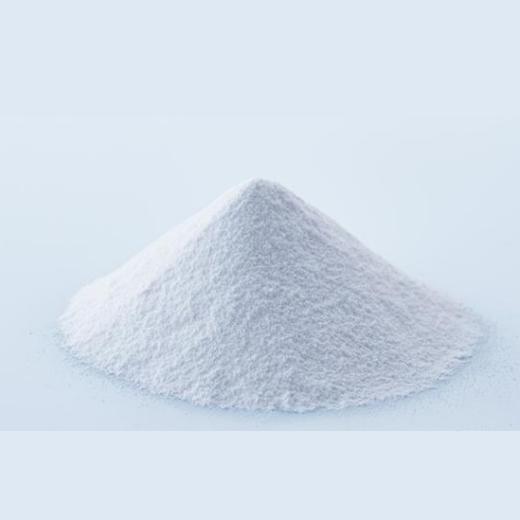

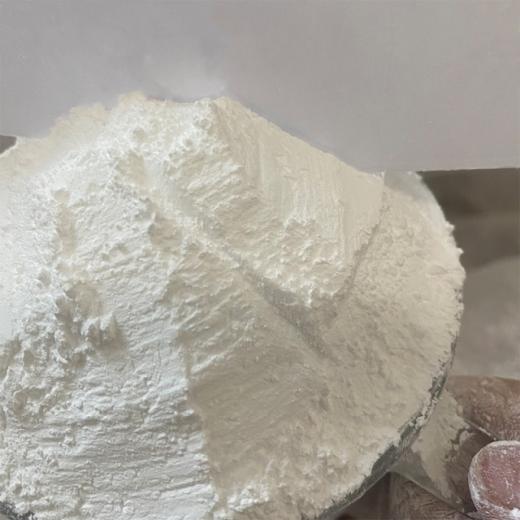

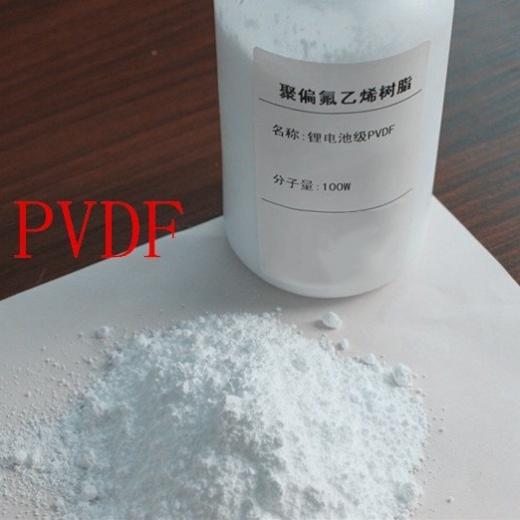

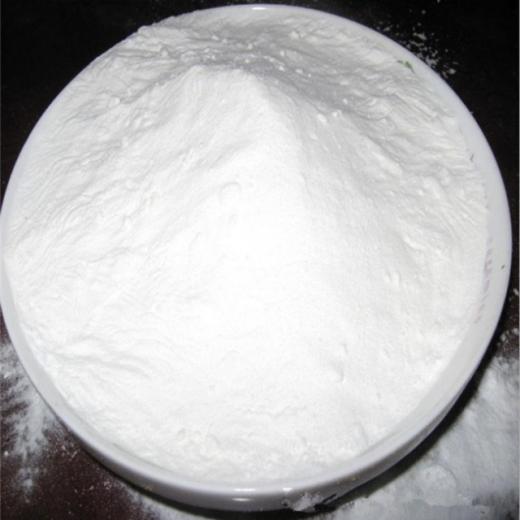

PVDF powder DR202B/DR202D/DR202E is the homopolymer of vinylidene fluoride , can be used for electrodes binder materials in lithium battery. DR202B/DR202D/DR202E is a kind of polyvinylidene fluoride with high molecular weight, it is soluble in polar organic solvent, it is of high viscosity and bonding and easy film-forming.the electrode material which is made by PVDF DR202B/DR202D/DR202E has good chemical stability, temperature stability and good processability.
Technical index
|
Item |
Unit |
DR202B |
DR202D |
DR202E |
Test Method/Standards |
|
Appearance |
/ |
White powder |
/ |
||
|
Oder |
/ |
Without |
/ |
||
|
Melting point |
℃ |
156 - 165 |
GB/T 28724 |
||
|
Thermal decomposition,≥ |
℃ |
380 |
GB/T 33047 |
||
|
Relative density |
/ |
1.75 - 1.79 |
GB/T 1033 |
||
|
Moisture,≤ |
% |
0.10 |
GB/T 6284 |
||
|
Viscosity |
Mpa·s |
8500 - 22000 |
/ |
/ |
25℃ 0.1g/g NMP |
|
/ |
1000 - 4000 |
2000 - 5000 |
25℃ 0.07g/g NMP |
||
Application
The resin is used of use of lithium battery electrodes binder materials.
Attention
Keep this product from high temperature to prevent toxic gas releasing at the temperature above 350°C.
Package, transportation and storage
1.Packed in plastic drums, and circular barrels cutside, 20kg/drum.
2.The product should be transported as non-dangerous product, avoiding heat, moisture and strong shock.
3.Stored in clearn and dry places, and temperature range is 5-30°C. Avoid contamination from dust andmoisture.
|
|
|
||
|
|
|
