PTFE Fine Powder
PTFE Fine Powder
Main Technical Data Sheet:
|
Item |
DR-15F |
DR-30F |
DR-10F |
DR-20F |
DF-25F |
DR-35F |
DR-40F |
DR-45F |
DR-55F |
DR-50F |
|
|
Cleaness |
Excellent Grade |
||||||||||
|
Bulk Density,g/L |
475±100 |
||||||||||
|
Tensile Strength,MPa≥ |
24 |
25 |
24 |
25 |
|||||||
|
Elongation,%≥ |
250 |
300 |
|||||||||
|
Moisture Content,%≤ |
0.030 |
||||||||||
|
Standard Specific Gravity |
2.120-2.150 |
2.120-2.150 |
2.150-2.200 |
2.150-2.220 |
2.135-2.170 |
2.160-2.190 |
2.160-2.200 |
2.140-2.200 |
2.160-2.200 |
2.145-2.175 |
|
|
Average Particle Size,μm |
400-575 |
||||||||||
|
Maximum Reduction Ratio |
400:1 |
1000:1 |
2500:1 |
2500:1 |
|||||||
|
Extrusion Pressure,MPa |
45.0-60.0(400:1) |
45.0-60.0(400:1) |
30.0-45.0 (400:1) |
25.0-45.0(400:1) |
10.0-20.0(100:1) |
25.0-45.0 (400:1) |
20.0-35.0 (400:1) |
20.0-40.0(400:1) |
45.0-70.0(1700:1) |
50.0-75.0(1700:1) |
|
|
Thermal Instability Index≤ |
-- |
50 |
10 |
50 |
50 |
-- |
|||||
|
PFOA Content,ppb≤ |
25 |
||||||||||
|
Processing Method |
Paste Extrusion |
||||||||||
|
Property |
Normal Value |
|
|
DR-4F |
DR-4F08 |
|
|
Appearance |
White loose powder |
White loose powder |
|
Tensile Strength,MPa≥ |
28.0 |
20.0 |
|
Elongation,%≥ |
350 |
350 |
|
Water content %≤ |
0.030 |
0.030 |
|
Bulk Density,g/L |
375-575 |
235-625 |
|
Average particle Size,μm |
400-900 |
400-900 |
|
Standard Specific Gravity |
2.140-2.190 |
2.175-2.225 |
|
Melting peak temperature ℃ |
322-332 |
322-332 |
|
Thermal instability index≤ |
50 |
50 |
|
Extrusion pressure(RR.100:1)Mpa |
5.5-14.0 |
5.5-14.0 |
|
Extrusion appearance |
Continuous、even、smooth |
Continuous、even、smooth |
Characteristics＆Applications
|
Item |
Characteristics |
Typical Applications |
|
DR-10F |
-- |
Designed for elastic band,membrane,cable wrapping film,and high-density seal tape |
|
DR-15F |
-- |
Designed for long fiber |
|
DR-20F |
-- |
Designed for membrane,etc |
|
DR-25F |
-- |
Designed for membrane. |
|
DR-30F |
-- |
Designed for membrane. |
|
DR-35F |
-- |
Designed for processing at low reduction ratios.Particularly suitable for production of thick wall tube and thin rod. |
|
DR-40F |
Excellent clarity |
Designed for thick wall tube and electric wire. |
|
DR-45F |
High thermal stability,superior stress crack resistance,low permeability and excellent clarity. |
Designed for forming tubes with excellent transparency and pressure resistance |
|
DR-50F |
Excellent fibre forming property,wide processing range |
Designed for processing at medium to high reduction ratios.Particularly suitable for production of thin wall tube and electric wire |
|
DR-55F |
Excellent electrical performance,high thermal stability |
Designed for processing at medium to high reduction ratios.Particularly suitable for production of thin tube,thin wall tube and wire,cable |
|
DR-4F |
With high tensile strength and good ductility, it is easy to make parts of various shapes. |

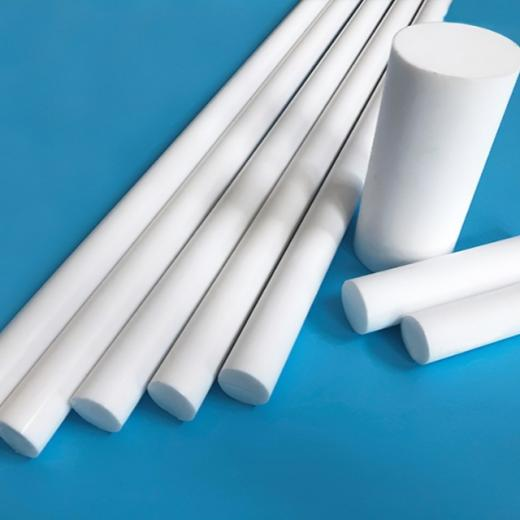

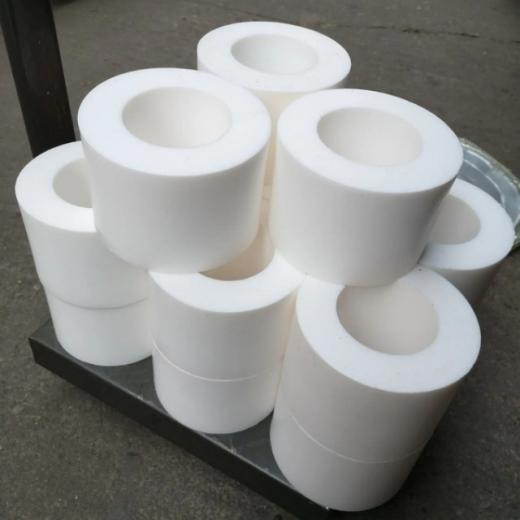

Make extruded tube ,rod, tensile film,seal tape,etc. |
|
DR-4F08 |
With high tensile strength and good ductility, it is easy to make parts of various shapes. |
Make low density seal tape. |
Packing,Storage& Transportation
1.The product is packed in two layers of plastic bags in a hard bucket with a net content of 20kg per barrel.The product certificate shall be attached to each bucket.
2.The products shall be transported as non-dangerous chemical.During transportation,prevent from humidity,intense vibration and package damage.
3.Products should be stored in a clean,cool and dry warehouse to prevent the mixing of dust,moisture and other impurities.
|

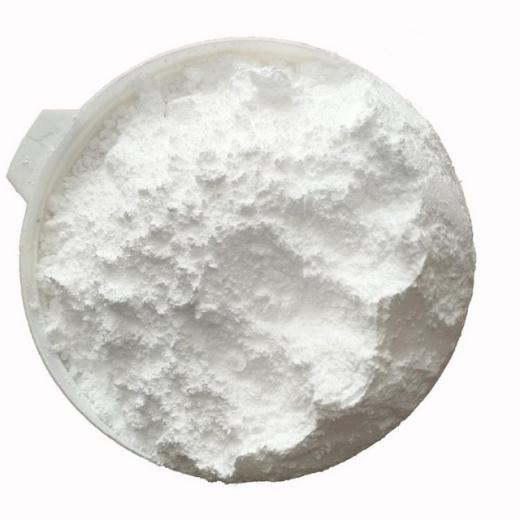

PTFE fine powder |
PTFE membranes |

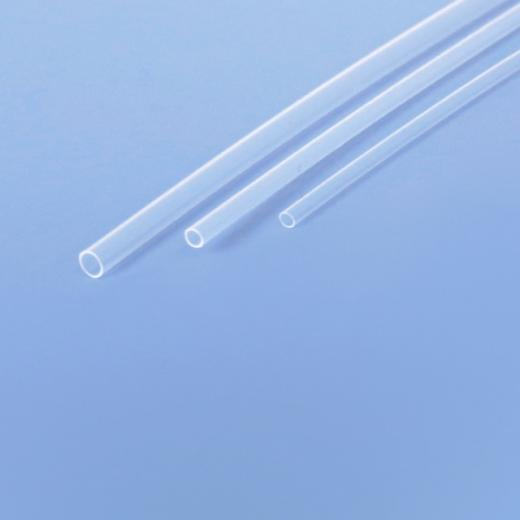

PTFE thin tubing |
|
PTFE cable wrap film |

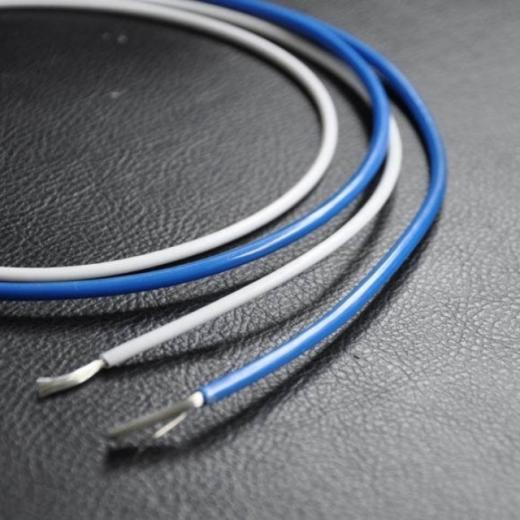

PTFE wire |

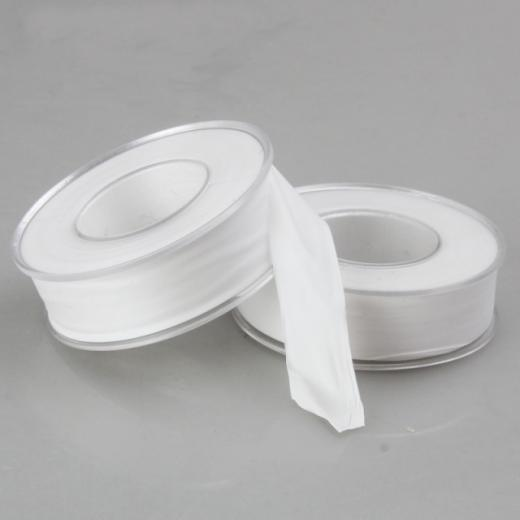

PTFE sealing tape |
|
PTFE fine powder |
