Product Description
PFA is a fully fluorinated copolymer of tetrafluoroethylene and perfluoropropyl perfluorovinylether. The performance and process temperature of PFA is similar to PTFE. PFA is with lower crystalization and melting viscosity. Comparedwith FEP, PFA has higher mechanical temperature performance, lt can be processed by the same molding method as generalthermal plastic resin.
Grades and Technical Properties
|
Grade |
MFR(g/10min) |
Breaking Strength≥(MPa) |
Elongation≥% |
Process |
Applications |
|
DR-200 |
1.1-3.0 |
30.0 |
280 |
Molding, Extrusion |

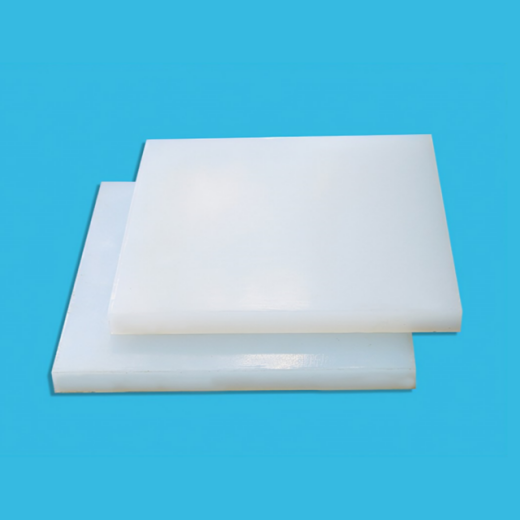

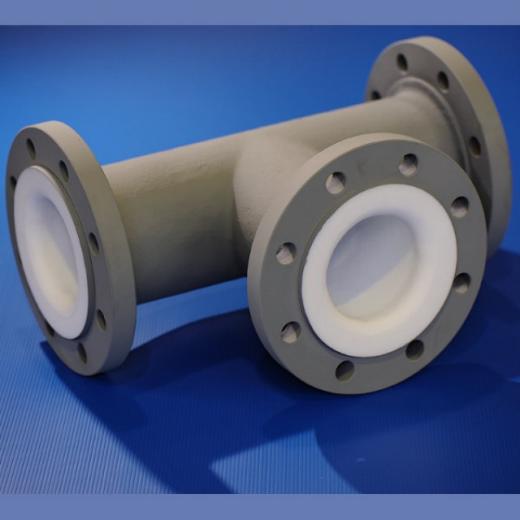

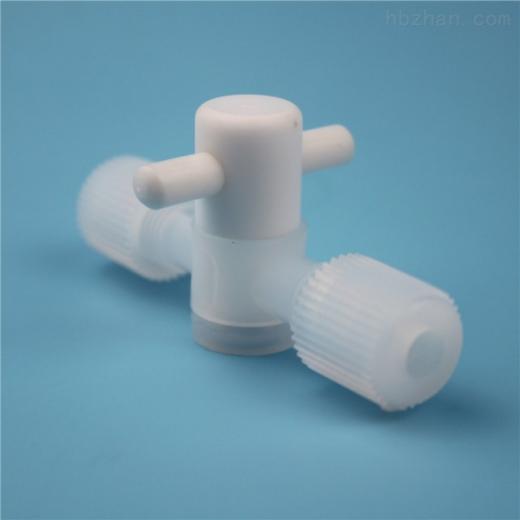

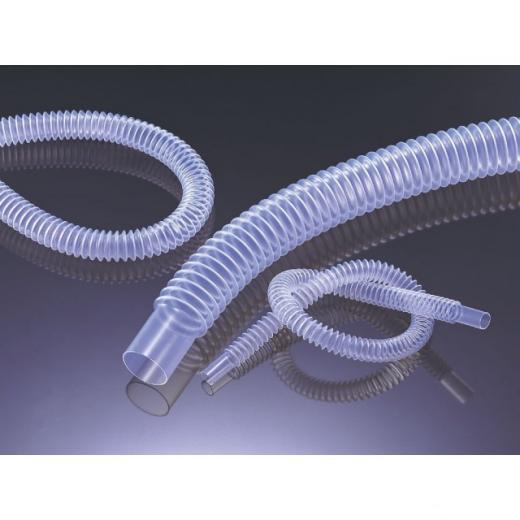

Tubing, pump, valve, plate |
|
DR-300 |
3.1-8.0 |
30.0 |
300 |
injection, Extrusion |
Tubing, filming, stick and jacket of cable |
|
DR-400 |
8.1-12.0 |
28.0 |
300 |
injection, Extrusion |
Injected product, jacket of cable |
|
DR-500 |
12.1-18.0 |
26.0 |
320 |
injection, Extrusion |
Injected product, insulation of cable |
|
DR-601 |
18.1-27.0 |
24.0 |
330 |
injection, Extrusion |
Injected product, insulation of cable |
|
DR-602 |
27.1-36.0 |
24.0 |
330 |
injection, Extrusion |
Injected product, insulation of cable |
|
DR-700 |
36.1-50.0 |
22.0 |
300 |
Extrusion |
Speed extrusion for thin wire and cable |
|
DR-800 |
50.1-80.0 |
20.0 |
300 |
Extrusion |
Speed extrusion for thin wire and cable |
Packing&Storage
Package: Normal package is 25kgs plastic bag or paper drum, and 1000kgs box. Customization is acceptable.
Storage: Stored in clean, cool and dry places;, avoid direct sunlight, moisture and dust.
|
|
|
 |
|
|
|
|
