PTFE Molding Powder Small Particle

PTFE Molding Powder Small Particle

Main Technical Data Sheet:

Item	DR-101M	DR-102M	DR-103M	DR-104M
Appearance	White Powder	White Powder	White Powder	White Powder
Tensile Strength,MPa≥	30	30	35	30
Elongation,%≥	300	300	400	350
Particle Size,μm	15-30	30-40	20-30	20-30
Bulk Density,g/L	300-450	300-480	300-500	300-500
Moisture Content,o≤	0.030	0.030	0.030	0.030
Melting Point,℃	327±5	327±5	327±5	327±5
Standard Specific Gravity	2.140-2.170	2.140-2.170	2.150-2.180	2.130-2.180
MIT Flexural Life(0.4 mm sheet,23℃),104 cycle≥	--	--	200	600
Compression Set (23℃, 14MPa,24h),%≤	--	--	5.0	6.0
Electric strength,MV/m≥	80	80	100	100
Processing Method	Molding	Molding	Molding	Molding

Application：

DR-101M：Making the film,colour film and as raw material to produce free flow resin.
DR-102M：It is suitable for pressing large billet,which can be processed into turning film,turning board and other products.Due to its low metal ion precipitation performance,it can be widely used in semiconductor,5G medical and other high-end fields.
DR-103M：This product is suitable for sealing gaskets,high-end pumps and valve linings with high creep resistance requirements,and has good mechanical and electrical properties,good weld-ability and low metal ion precipitation performance.It is widely used in semiconductor,5G and other high-end fields.
DR-104M：The product is suitable for diaphragm sheet,bellows and other products with high bending resistance requirements,and has good mechanical and electrical properties,good weld-ability,low metal ion precipitation performance,widely used in semiconductor,5G and other high-end fields.

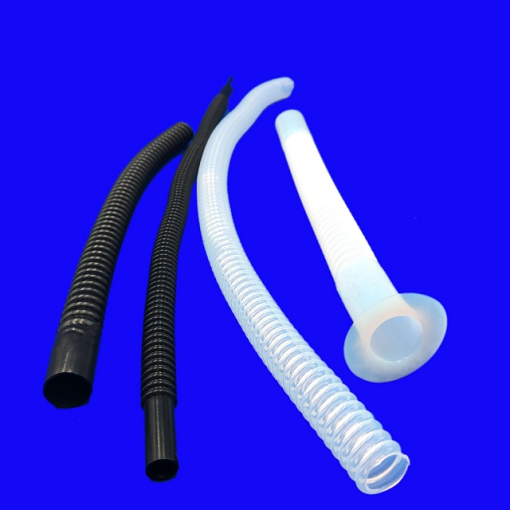

PTFE bellows

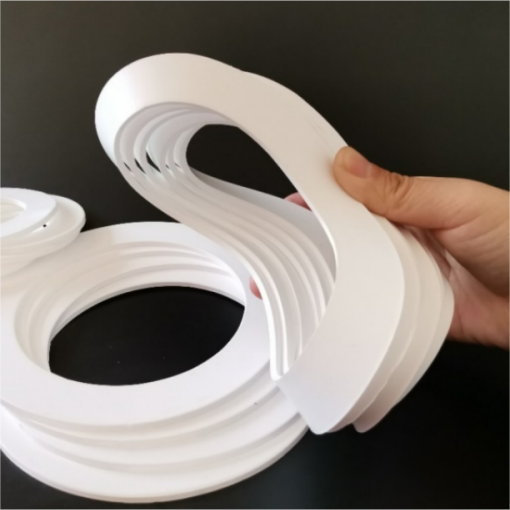

PTFE gaskets

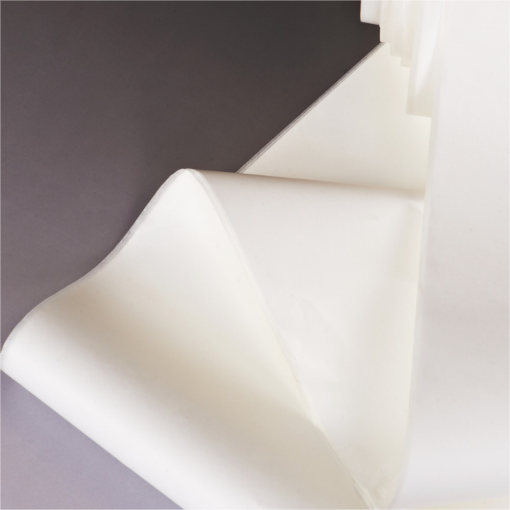

PTFE Turning Plate

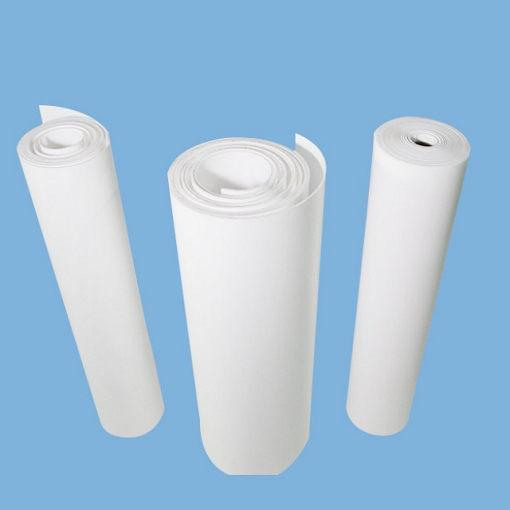

PTFE membranes
